AL-KO 10-inch 623660XP3 Heavy-Duty Solid Tyre Jockey Wheel
Deal Price
$149.41
RRP $227.95
NOW $149.41
SAVE 34%
- Sold Out
- On Sale
Bulky Item: HR22-DS-34154
Sale Ends in
00:00 am, 15 December
2025
This premium AL-KO swing jockey wheel allows for quick coupling and uncoupling of trailers and caravans. The shaft can be rotated into a horizontal position, so you never have to remove your jockey wheel after use. Just swing it up for convenient storage.
This jockey wheel has a 400kg static weight capacity and is ideal for heavy-duty use. It has a 250mm (10-inch) solid rubber tyre that can handle a variety of surfaces, including soft or uneven ground. The bolt-on swivel bracket allows for easy installation on your drawbar (U-bolts not included).
With a 48mm zinc-coated shaft, this jockey wheel is resistant to corrosion. Its 250mm maximum extension allows for a lift range of 320mm to 570mm between the ground and the centre of your drawbar. With its high weight capacity and convenient swivel mount, this jockey wheel is a must-have for serious campers
FEATURES:
SPECIFICATIONS:
CONTENTS:
This jockey wheel has a 400kg static weight capacity and is ideal for heavy-duty use. It has a 250mm (10-inch) solid rubber tyre that can handle a variety of surfaces, including soft or uneven ground. The bolt-on swivel bracket allows for easy installation on your drawbar (U-bolts not included).
With a 48mm zinc-coated shaft, this jockey wheel is resistant to corrosion. Its 250mm maximum extension allows for a lift range of 320mm to 570mm between the ground and the centre of your drawbar. With its high weight capacity and convenient swivel mount, this jockey wheel is a must-have for serious campers
FEATURES:
- 400kg static weight capacity
- Convenient swivel mount
- Quick-release handle

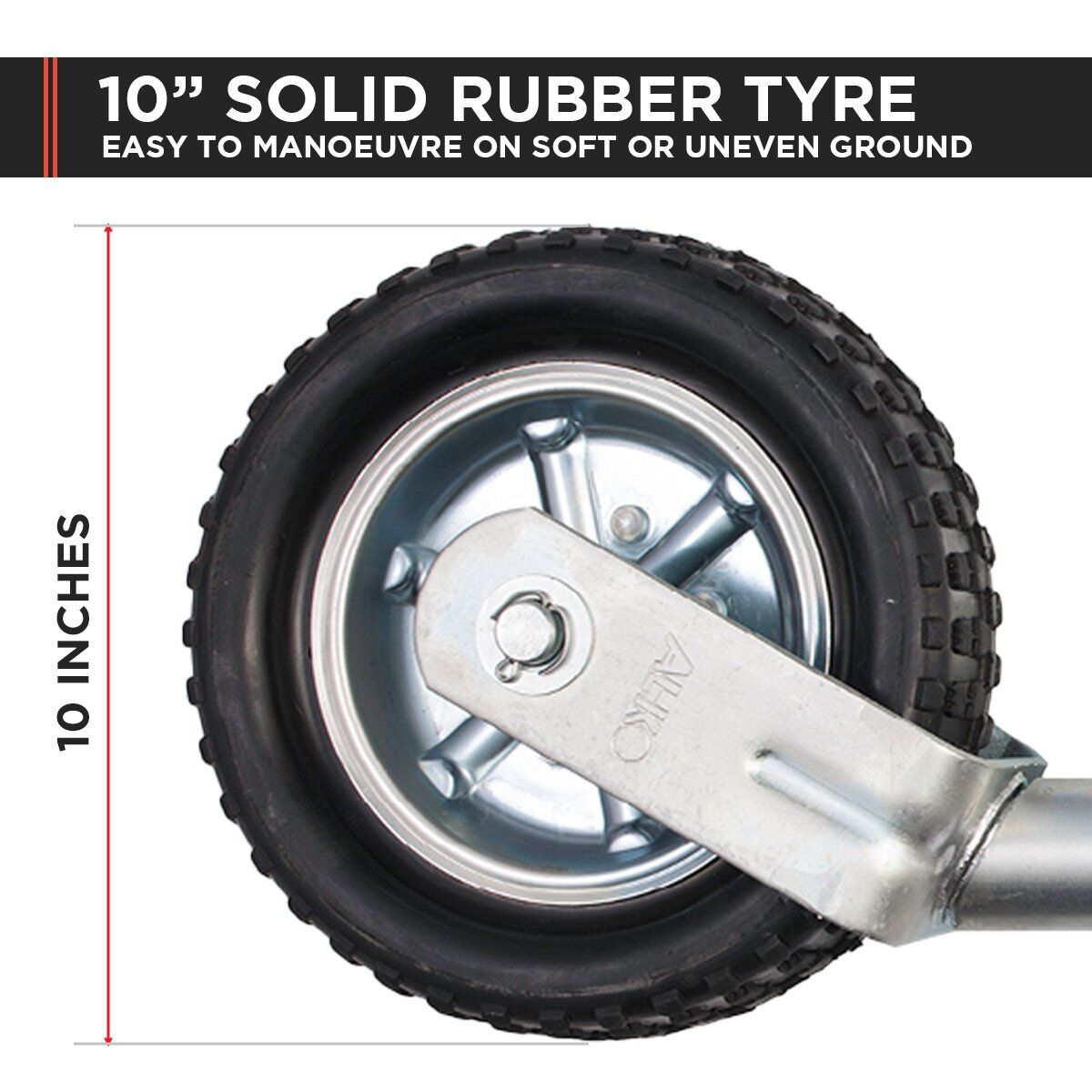

- 10-inch solid rubber tyre

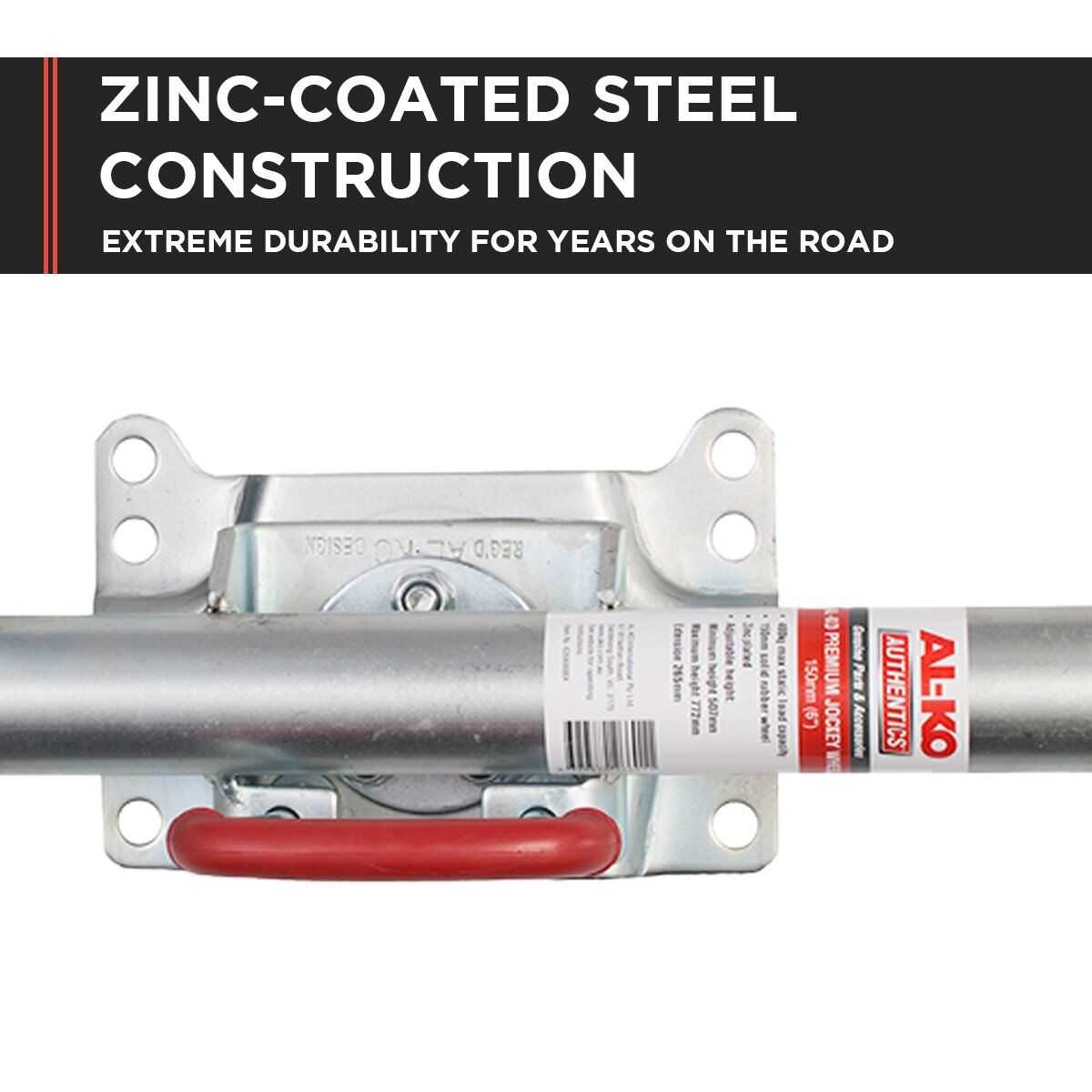

- Zinc-coated for extreme durability
- Mounting: Swivel
- Static Capacity: 400 kg
- Tube O.D.: 48mm

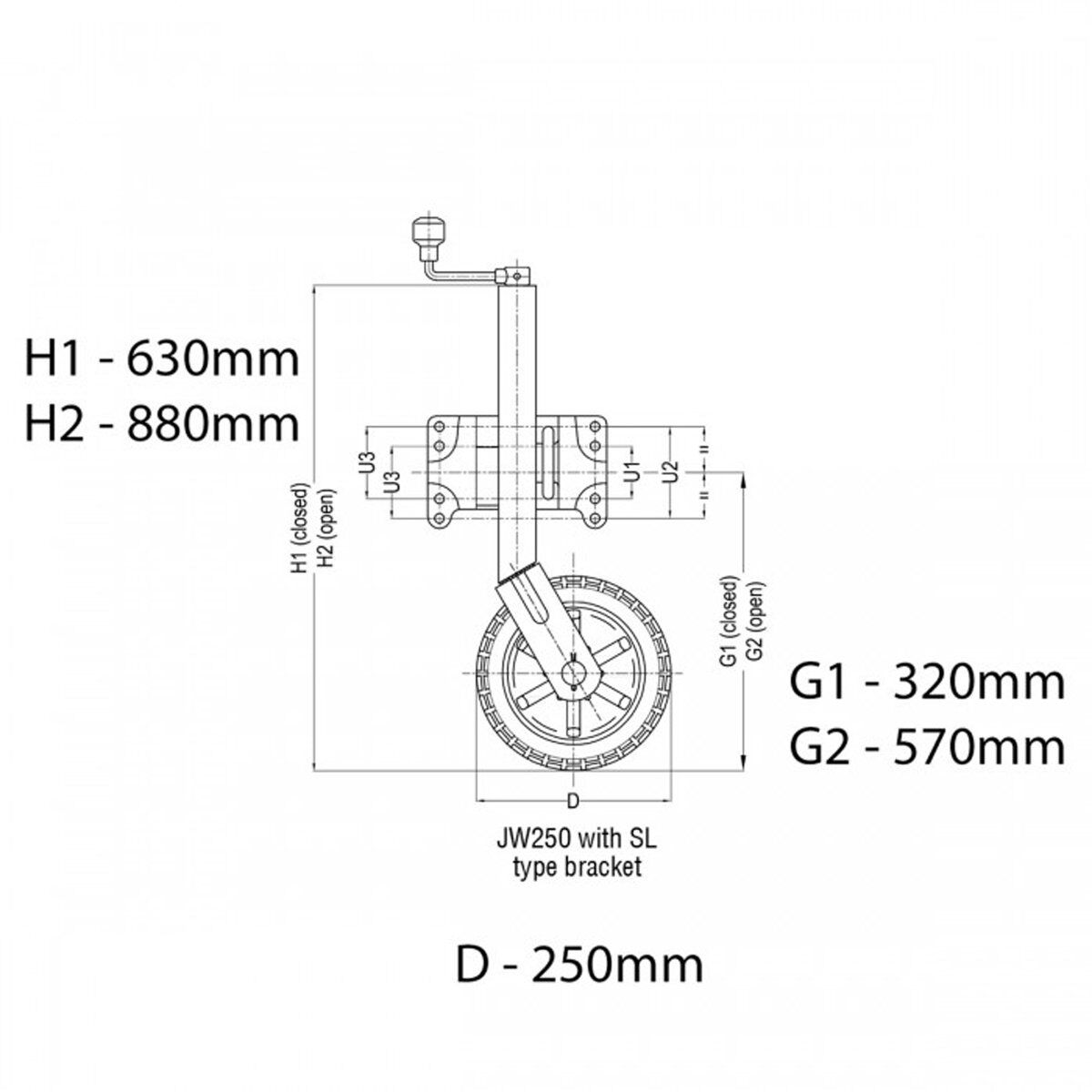

- Closed H1: 630mm
- Open H2: 880mm
- W: 185mm
- Weight: 11 kg
- Solid rubber tyre
SPECIFICATIONS:
- Brand: AL-KO
- Type: Swivel
- Max Weight Cap: 400kg
- Frame: Steel
- Wheel Size: 10"
CONTENTS:
- 1 X AL-KO 10 in
Product Code : DS-623660xp3
SKU : HR22-DS-34154
